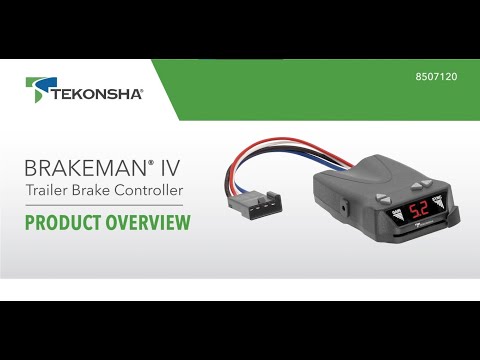

Brakeman® IV Time-Delay Brake Controller for Trailers with 1-4 Axles, Black

Part No 8507120
The Tekonsha Brakeman IV digital trailer brake controller provides safety and connection when you need it most. As a time-based controller, the Brakeman IV is a great choice for basic, light-duty towing needs. This compact controller works by electronically connecting your vehicle and your trailer. When you hit the brakes in your tow vehicle, it generates an output signal that ramps up, or increases over a period of time, applying braking power to your trailer at a fixed rate. The Brakeman IV has up-front buttons so you can easily adjust power output, the sync – or aggressiveness with which the controller applies the brakes, and engage manual override to help you brake safely when an unexpected stop pops up. It also works with electric or electric over hydraulic braking systems, and features advanced internal circuit protection, real time comprehensive diagnostics, and short circuit protection. Because the Brakeman IV is a time-based controller, there’s no requirement that it be positioned in the direction of travel; it can be installed anywhere you like as long as it is within reach of the driver. Plus, the Plug & Play feature allows for quick and easy connection with your vehicle’s wiring. The Brakeman IV trailer brake controller works with1-4 axle trailers, comes with all the mounting hardware needed for installation, and is backed by a limited lifetime warranty.
  • TIME-DELAYED DIGITAL BRAKE CONTROLLER: Applies braking power that ramps up, or increases over a period of time, at a fixed rate. This makes the Tekonsha Brakeman IV brake controller ideal for basic, light-duty towing needs.
  • EASILY INSTALL: The Brakeman IV trailer brake controller has a Plug & Play port for easy installation. As a time-based controller with a compact design, the unit can be installed above or below the dash, in any direction, as it is within reach of the driver.
  • EASY-TO-READ INDICATOR: Digital display shows settings, real-time comprehensive diagnostics, and short circuit protection. Red light means power increase to trailer brakes. Green light means secure connection with trailer.
  • EASY-TO-READ DISPLAY: Digital display on handheld remote shows proper connection, power output, and complete diagnostics.
  • MANUAL BRAKING AVAILABLE: If you ever need to manually apply the brakes, simply move the manual control lever to the left. The Brakeman IV will apply power to your trailer’s brakes up to the amount of power previously set.
  • VERSATILE: The Brakeman IV digital brake controller is compatible with a wide range of vehicles including Ford, GM, Chevy, Dodge, RAM, Toyota, Jeep, and more with 2, 4, 6, and 8 brakes (1-4 axles). Vehicle-specific Tekonsha Plug & Play brake controller wiring harness sold separately.
BUY NOW
Add to My List:
Add to Compare
Ships free & fast to local dealers
Ships free & fast to local dealers

We ship your order directly to your choice of one of our 1,250+ ShopHitches Network Dealers. More Info More Info

Expert installation available nationwide
Brand: TEKONSHA
Part Number: 8507120
Warranty: Limited Lifetime Warranty
UPC: 042899017721
Dimensions: 4.5" x 2.5" x 7" (Shipping)
Finish: Black Plastic
Weight: 0.6 lbs

When used together, the following parts make up the product (Kit) at the top of the page. They can be purchased together as part of the kit or as separate components for replacement or repair; however, ALL of the following MUST be used in order for the above product to work as advertised.

Tool Sizes Needed
Trailer Brake Control Mounting Kit

Trailer Brake Control Mounting Kit

Part No 20059

Replacement Part, Mounting Kit

This product is not vehicle specific.
